EPTechnologies
Marine Propulsion Provider & Battery Producer
EPTechnologies is a complete marine propulsion provider for electric and hybrid vessels.
We guide the customers through the process of turning dreams into real hybrid and electric vessels, offering the highest quality solutions that makes economical sense.
With us you get all out of one hand, from our in-house lithium-ion batteries, DC-generators and sail /shaft or Z / Jet drives and it’s all controlled by our own truster control and EPMS software systems.
STAND NUMBER:
03.331|
03.330
CATEGORIES:
Product category
Marine electronics & Marine related software:
Electrical, Electronics, Engine Management, Navigation
Machinery, propulsion, mechanical and electrical systems and fittings:
Cooling and Exhaust Systems, Engines and Motors, Starter Systems and Parts, Transmissions and Gears
EVENTS:
METSTRADE 2024
ADDRESS:
Jyllandsgade 17 DK-6400 Sønderborg Denmark
WEBSITE:
Products
View all products
In-Line Hybrid System
A parallel hybrid propulsion system designed for power vessels ranging from 7m up to 50m superyachts.
The system is tailored to accommodate electric power requirements from 20kW to 600kW, complemented by an ICE motor of up to 1,700hp. The PM motor shaft aligns directly with the output shaft of the combustion engine and the marine gear, enabling direct propulsion of the propeller shaft from the diesel engine, the e-motor or a combination in diesel-electric boost mode. Furthermore, the design can seamlessly transition to generator mode while driving with the diesel engine engaged.Serial Hybrid Inline Shaft
Electric motor drives the shaft, powered by batteries and/or a generator
Thermal engine, Volvo, MAN, MTU or other 150 to 1500 HP E-motor up to 50 – 360 kW RPM 1200 – 2200 on the engine shaftSerial Hybrid
Has an electric motor for propulsion, with a generator supplying power, allowing for efficient energy use, reduced emissions, and flexible operation.
Thermal engine, Yanmar 45 – 250 HP E-motor up to 150 kW Generator up to 100 kWSilent Night Mode set for Yachts & Super Yachts
Silent night mode for yachts enables quiet, emission-free operation by running on battery power, offering a peaceful onboard experience without engine
Variable EPT DC Genset, 40 – 3000 kW EPT EMS/PMS control system including 15″HMI EPT Battery 622 V, 110 kWh, factor x of according to yacht size Optional aircon system, direct from the HV DC linkSaildrive

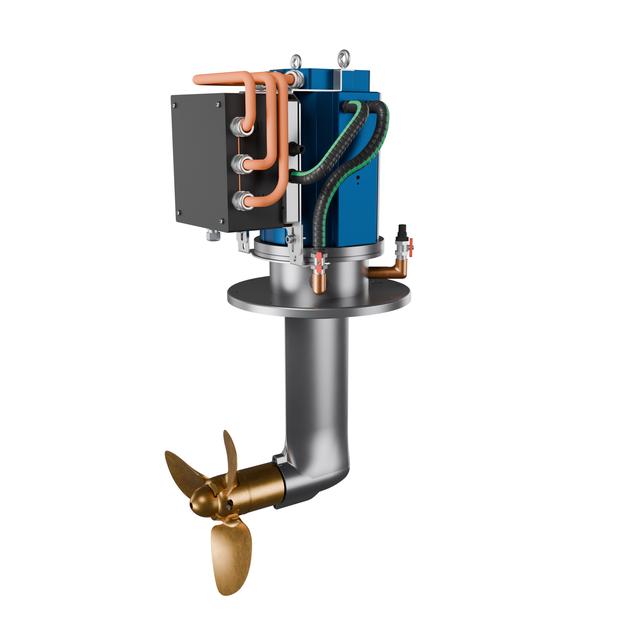

Quiet, efficient, and environmentally friendly electric saildrive, offering smooth handling and low maintenance.
Our innovative saildrive offers an entire electric propulsion system with a powerful electric motor, high-efficiency lithium batteries and utilizing the maximum energy during the sail and battery recharge using the Turnable mechanism. The saildrive can also come with a 360-degree rotationDrop In Unit on Frame for Motorboats
A drop-in unit on a frame enhances convenience, maintenance accessibility, and versatility in power boat design and operation.
System built on a frame – easy and quick assembly. We have developed a system to meet the shipyards needs for an efficient and safe way to build an electric boat with no difficulties. The systems are fully tested before shipping from the factory and pass all quality tests and adapted to meet the shipyards wishes and expectations.UC8 DC Mini - Generator
Ultra-compact, light weight var. speed DC genset
EPTechnologies has developed an ultra-compact and light weight variable speed DC genset which is believed to be the lightest on the market. This plug and play genset weighs 80 kg which is almost 70% less than a comparable AC generator. The light weight is important to save energy and was therefore one of the important factors when designed. The output is 48V to 700V DC and it creates a continuous power of 8kW with a peak of 10kW. Dimensions are roughly 690mm x 510mm x 420mm This generator will be wellBoatControl App

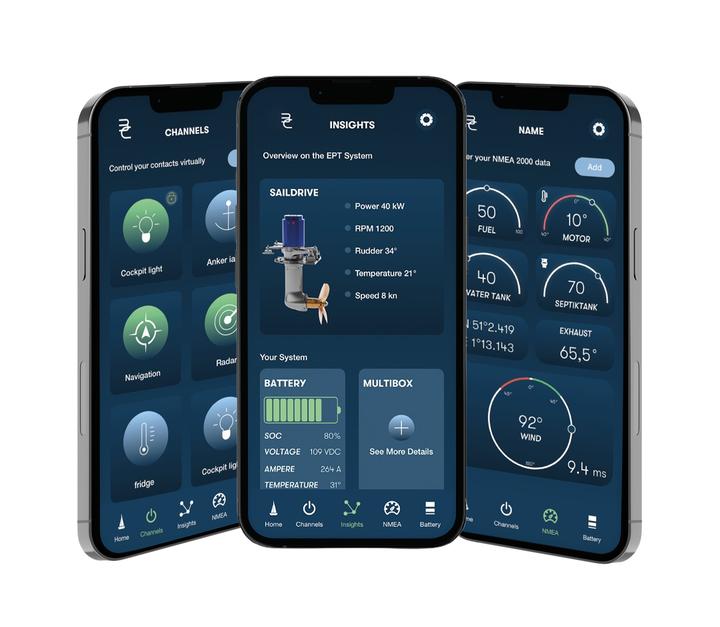

Whether relaxing on the sofa or sitting in the galley, your boat data is never further away than your mobile/tablet.
The BoatControl App gives you shore power control, 10 extra contacts of your choice and NMEA 2000 interface from your boat data. You can monitor your lithium batteries, both for your propulsion and consumption low voltage batteries, shore power and control your charging. Access your boat both at sea and from home. We have taken care of the difficult matters regarding the connections to make it easy for you. Open your App and you’ll be automatically connected to your boat with a secure connectionSolid State Technology Battery
Outstanding safety record, high energy density, and longer lifespan compared to other batteries at no extra cost.
Solid State Tech Batteries can withstand overcharging, extreme heat, and punctures without harm. With a hardware override switch, electronic control systems can be bypassed, ensuring reliable power access in any situation. Additionally, their extended cycle life of over 10,000 cycles makes them more environmentally friendly and cost-effective, offering significant ecological and economic advantages.Battery
HV / High Energy Power Packs
All New Li-NMC (Nickel Manganese Cobalt) cells provide more power, lighter weight, smaller size and 25% more range than last year’s LiFePo4 chemistry. These cells have been updated with even lower impedance. Lightweight High Quality 3.7V (nominal) Li-NMC cell. Pre-charge circuits is included in each battery string, isolation monitoring and SoC (state-of-charge) & SoH (state-of-health) calculations as well. The batteries have a 8 to 12 year life expectancy depending on how well you treat them. Smaller sized
