EM230 Compact
Adapted from the very successful big brother with a high response of 8.3M2. Suitable for 6-9 meter fast fishing boats
Available with optional factory fitted :-
Lalizas DOT all round navigation light (illustrated) or Tri-colour light supplied with 4M of cable.
Hella LED 360 all round white supplied certified by RINA/USCG/IMO/NMMA to 2nm with 1M cable
Orionis B LED with RINA certified to 2nm. Cable length to be specified.
Fitting kit included
Maximum response of 8.3M2 average 1.3M2.
Width 245mm Height 268mm with light 340mm
150mm Base fitting with 4 x 6mm fixings @ 80mm centers
Weight with light 1.6k
EM Compact Plus
Compact Plus Maximum RCS 23.38M2
Adapted from the very successful EM230 Compact with Maximum response of 23.38M2. Ideal for Ribs, land hazards, marina entrances, poles, buoys and fish farms. Built to support large Navigation lights such as Sealite and Carmanah.
Available with optional factory fitted extras :-
Lalizas DOT all round navigation light or Tri-colour light supplied with 4M of cable.
Hella LED 360 all round white supplied certified by RINA/USCG/IMO/NMMA to 2nm with 1M cable
Orionis B LED with RINA certified to 2nm. Cable length
Combi MK2 Bracket
Our MK2 Combi bracket gives you multiple mounting
Made from 2mm Stainless steel it will accommodate smaller radars such as Raymarine, Garmin, Simrad and Furuno etc. The basic upright enables our popular EM230 Basemount, Compact or Compact Plus radar reflectors with or without a navigation light, or Active X or XS target enhancers to be safely positioned over the radar (Figs 1&2).
Optional extras:
Top plate is available with fixings for an Active RTE, AIS and Hella 360/Orionis LED light. (Fig 3)
Stainless steel ADM100, 100mm 1 1/4tpi thread for the RTE, AIS
EM230/BR Radar reflectors
EM230/BR with Ships Wheel Mark and Ensign Mark Suitable for vessels 9 metres and above
Successfully tested by QinetiQ to ISO 8729-1999, and meets RORC,ORC,ISAF 2012/13 and WCC requirements of 10M2. Echomax EM230 has now been allocated a NATO Stock No.5840-99-742-6193 following the adoption and use of the Echomax EM230 by the UK Military Forces and others throughout the World. Used by the US Navy for target and other uses. The EM230 has Ships Wheel Mark certification for life boats and rescue craft as from December 2012 and copies of the BABT- TUV Module B
EM180 Midi Passive radar reflector
Suitable for small yachts and motor vessels 6 to 7 metres in length. It is 360mm tall and 197mm wide, weighing just 1.2Kgs
EM180 Passive Radar reflector
The EM180 has a documented maximum radar cross section of 8M2 and is suitable for vessels up to 7-8 meters
We have utilised the largest possible patented symmetrical stacked array with the smallest possible robust Polyethylene case with minimum windage and weight. The EM180 is suitable for deck, mast mount fixing, or halyard suspension and is available in white, orange or yellow. Used extensively on marine buoys and for tsunami warning buoys.
Dimensions: Height: 478mm (overall)
Width: 197mm (overall)
Fixing Centre's: 435mm
Fixings: 2 x 8mm stainless eyelets
Weight: 1.4kg
EM230 Midi Passive radar reflector
The medium sized Echomax radar reflector with a maximum 20M2 radar cross section is suitable for 8-15 meter sailing yachts
Suitable for mast, deck bracket or halyard suspension. Fully tested by QinetiQ. Exceeds RORC/ORC/WCC/ISAF requirement of 10M2.
@+/-3°-20m² peak, 75% @2.5m², 100% @1.25m²
Dimensions:
Height: 450mm
Width: 245mm
Fixing centre: 408mm
Fixing holes: 8mm
Weight: 1.9kg
EM230 Midi Basemount Passive Radar reflector
EM230 basemount suitable for direct installation on wheel house roofs, RIB A frames, marker buoys.
EM230 basemount suitable for direct installation on wheel house roofs, RIB A frames, marker buoys. Robust four hole base fixing and supplied with fixing kit comprising of spacers to avoid over tightening and neoprene washers to absorb the shock of crashing down on waves at speed.
QinetiQ anechoic response see below
@+/-3°-20m² peak, 75% @2.5m², 100% @1.25m²
Dimensions:
Height: 432mm (with fitted light - 540mm)
Width: 245mm
Base Diameter: 150mm
Fixing Centre's: 4x6mm bolts at 80mm center's
EM325 Passive radar reflectors
Available in 2 or 3 stack versions. For use as a top mark for buoys or land hazards. Maximum 86.04m2 RCS response
with robust 5mm or 6mm thick UV resistant PE case to suit heavy navigation lights. 4 x 12mm Base fixings @ 200mm PCD with optional top fixings to suit a navigation light of your choice. Pedestals are also available separately.

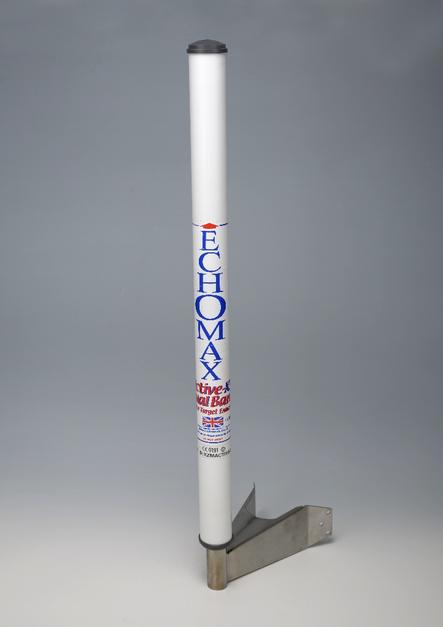

Active X Radar Target Enhancer
The Active X State of the art Echomax Active-X-Band Radar Target Enhancer. has FCC Approved ID: XZMACTIVE-X - NATO stock number 5840 99 904 3941
Active RTE are increasingly being used on navigation buoys and their estimated power consumption can be seen on the Technical info page. Non use of the control box saves 10mA of power.
Specification
Reception frequency: X band 9.32 – 9.5 GHz
Operating Temperature: -20 to +60 degrees C
Voltage: 12V DC - +30%-10% (voltage surge and cross polarity protected)
Stand by current consumption: 15mA
Position accuracy: Within 1 meter
5 interrogating radar 23mA
10 32mA
EIRP: 1W
(Mast Bracket not included)
Active XS Radar Target Enhancer
Enhancer with minuscule current draw of 23mA on stand by and very high X and S band response many times the new ISO 8729-2 standard. Unique visual fa
The Active-XS amplifies and returns a stronger signal and these high responses to both X or S Band Radar increase the likelihood of improving your vessels radar cross section and helps to alert oncoming vessels of your position and detection especially in poor conditions and thereby reduces the risk of collision.
Active RTE are increasingly being used on navigation buoys and their estimated power consumption can be seen on the Technical info page. Non use of the control box saves 10mA of power.

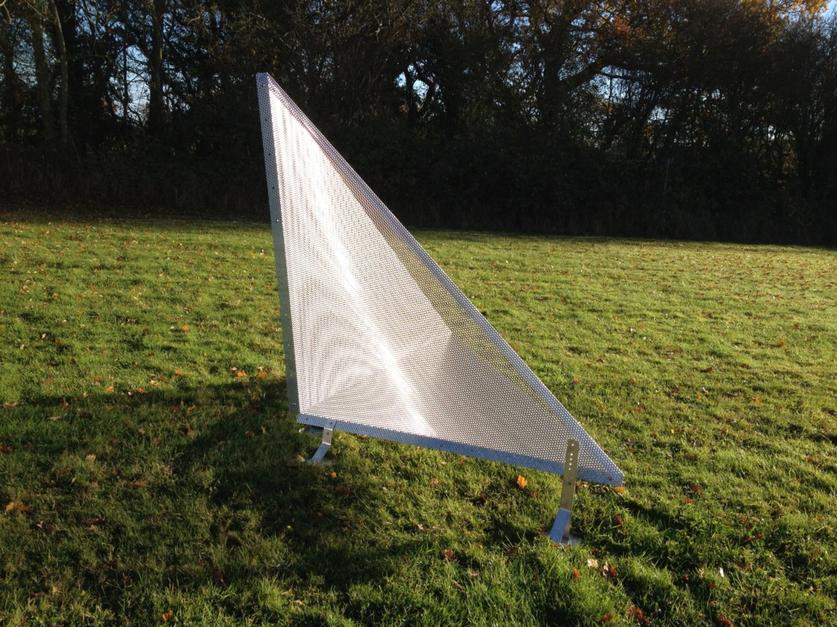

Trihedral
Echomax trihedral corner reflectors provide a very high Radar Cross Section (RCS) response/target for a wide range of frequencies for radar testing.

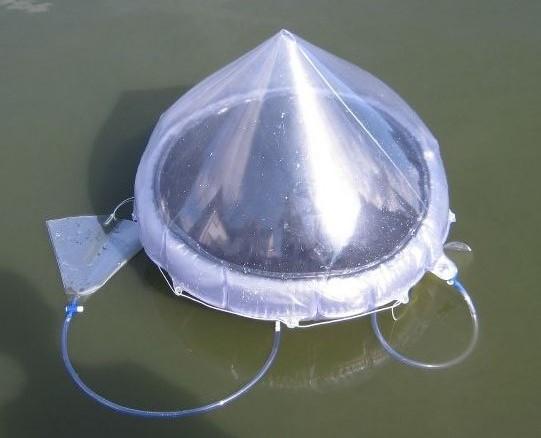

Solar Still
Environmentally Friendly, Turns sea water or impure water into drinking water utilizing Solar radiation. No electricity needed
Safety at sea: An ideal addition to the grab bag for any ocean going yachtsman - you are always sure to have drinking water.
Competitive: The solar still costs only a fraction of the price of a mechanical or electrical unit. Proven reliability: The solar still has been used for over fifty years by military and civilian services around the world. NATO stock number 4610-99-553-9955
Instructions in 6 languages. Aquamate solar stills are light, compact and very easy to use.

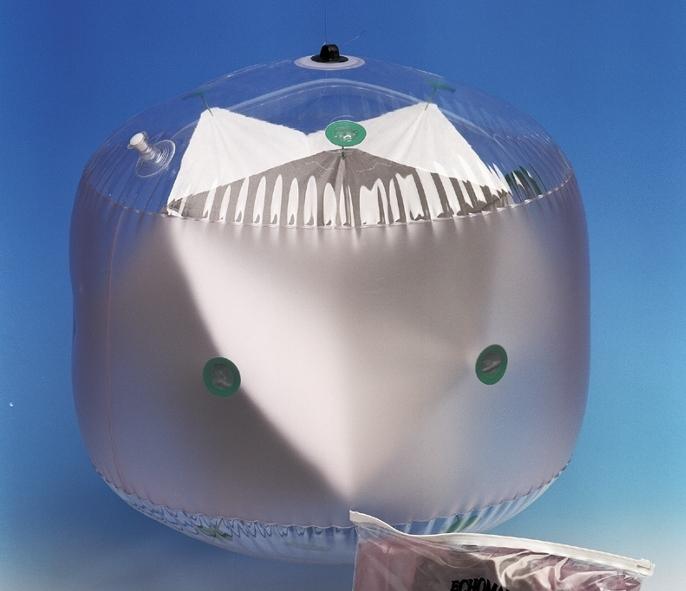

EMA03i Inflatable Radar Reflector
Inflatable Radar Reflector with Ships Wheel Mark and Ensign Mark with Certification
with Ships Wheel Mark Certified to Schedule 4, Part 4, Paragraph 1.1.14 of the Merchant Shipping (life saving appliances Regulations 1986 and hence chapter III, Regulation 38.5.1.14 of the 1983 Amendments to the International Convention for Safety of Life At Sea (SOLAS) 1974 Suitable for stowage in liferaft emergency packs up to 36m above sea level as required by IMO Specification annexed to UK Merchant Shipping Notice M. 1485, 1991, published by the Department of Transport, Marine Directorate.
EM230i Inflatable Radar Reflector
EM230i DuPont metallized, lacquered and spunbonded fabric array with PVC case. Folds down neatly to pocket size
QinetiQ recorded an astonishing a maximum response of 25.6M2 - (SPL 4.1M2) exceeding the 10M2 WCC : ISAF : ORC and RORC requirements by two fold. With each product we supply a Certified QinetiQ Linear diagram in case required by the race scrutineer's.
EM400 Radar reflector
Developed for Scandinavian made Ice buoy to give enhanced radar visibility. The picture shown has neutral PE case but these can be made in white, red, green or black etc.
Dimensions:
Overall height: 885mm
Width: 410mm
Weight: with neutral PE case 6.5kg with coloured case 7.3kg
EM500 Radar Reflector
Latest edition to the Echomax range with massive response ideal for target use.
Maximum radar cross section 361.1m2
Average RCS over +/- 3 degrees of heel = 68.1m2
Height 1055mms
Diameter 500mms
Weight according to material
EM12

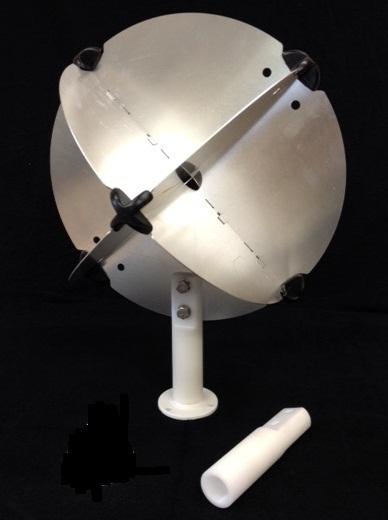

Echomax now offer the EM12 a popular corner 12inch ball reflector, for everyday or emergency use
The RORC recommend a mounting height of 4 meters above sea level or on small craft as high as possible. Mount in the catch rain position with the open corners facing the horizon. Mounting heights of 10-35 feet will give an approximate radar response between 4-7 nautical miles. In the catch rain position the EM12 gives a maximum RCS of 5.57m2 and an average RCS of 1.77m2.
Meets ISAF rules 2015 and on USCG approved radar reflector list

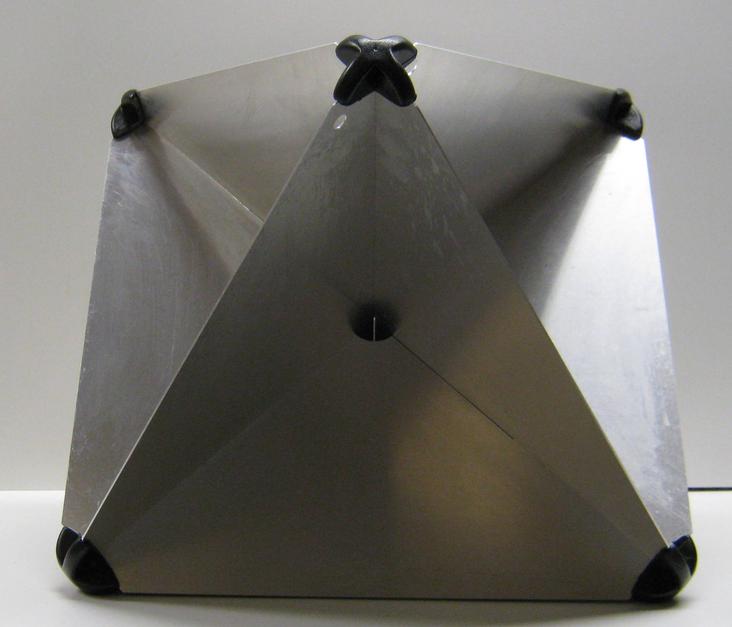

EM18 flat packed 18" Octahedral
A flat packed 18” Octahedral corner reflector for emergency use.
A flat packed 18” Octahedral corner reflector for emergency use.
The RORC recommend a mounting height of 4 metres above sea level or on small craft as high as possible, mount in the catch rain position with the open corners facing the horizon. Mounting heights of 10-35 feet will give an approximate radar response between 4-7 nautical miles.
Packed dimensions are 13 x 13” and weighs 1.1kg
Mounted in the catch rain position the EM18 gives a maximum RCS of 10.66m2 and an average RCS of 3.42m2
